Arena Capy-D
Drop Table Automatic Embroidery Machines Series for Standard
and Tubular Embroidery |
| |
|
|
|
|
| |
|
|
|
| |
|
|
|
 |
|
|
 |
Arena

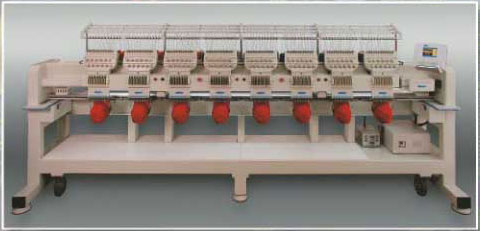

Capy-D series. Multi-head, multi-needle drop
table embroidery machines with automatic thread trimming and
automatic color change. High speed, large embroidery area, built-in
thread trimmer, integrated thread break control and advanced
computer control system with color LCD display. For producing
embroideries various in size and complexity. Equipped with easy
to change framing system for embroidery on caps and ready made
clothes, as well as for standard embroidery. Optional single
or double sequin devices mounted on the embroidery head for
embroidering designs with different cord and sequins sizes.
Optional cording device. |
Specifications |
Options |
| Head Number |
1-8 |
Needle Distance, mm |
400, 450, 500 |
Sequin Device |
Cording
Device |
| Needle Number |
6,9,12,15 |
Area Depth, mm |
450 |
Device Type |
Left or/and Right |
Device Type |
Height Adjustable, Left |
| Stitch length,mm |
0,1 - 12,7 |
Cap Frame, mm |
75 x 280 |
Speed,
spm |
700 |
Cord
Type |
Thread
Twisted |
| Speed, spm |
850,1000 |
Power Supply, V |
110 / 220, Single Phase |
Sequin
Size, mm |
3,
5, 7 |
Cord
Size, mm |
1,
1.5, 2, 2.5, 3, 3.5 |
|
©2001-2016
Komtekct Ltd. |
•
The embroidery area indicated above is for maximum pantograph
movement. The actual embroidery area may be restricted by the
frames used.
• The
embroidery speed ranges is indicated above. The actual speed depends
on embroidery conditions, i.e. stitch length, fabric used, etc.
• Orders
for customized machines with non-standard embroidery area and
specifications are accepted.
• We
reserve the rights to change the specifications for improvement
without previous notice. |
|
