Arena Capy-C Single Head Automatic Embroidery Machines Series for Embroidery on Clothes and Caps
Functions list
Functions list
Functions list
Functions list
Functions list
Functions list
Functions list
Functions list
Functions list
Functions list
Functions list
Functions list
Functions list
Functions list

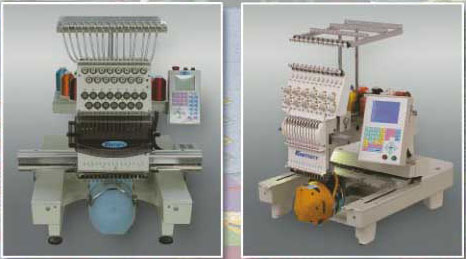

Arena Capy-C series. Single head, multi needle tubular type compact embroidery machines with automatic thread trimming and automatic color change. High speed, separate computer control case, direct computer connection, tubular and cap frame equipment. For sampling, monogramming and personalization on caps and ready made clothes, and for performing standard embroidery. Optional single or double sequin devices mounted on the embroidery head for embroidering designs with different cord and sequins sizes. Optional cording device.
Specifications
Options
Head Number 1 Embroidery Area, mm 450 x 350

Sequin Device

Cording Device
Needle Number 9,12,15 Cap Frame, mm 75 x 190 / 350
Device Type
Electric
Device Type
Height Adjustable, Left
Stitch Length,mm 0,1 - 12,7 Dimensions, mm 762x782x871
Speed, spm
700
Cord Type
Thread Twisted
Speed, spm 1000 Weight, kg 80
Sequin Size, mm
3, 5, 7
Cord Size, mm
1, 1.5, 2, 2.5, 3, 3.5

©2001-2016 Komtekct Ltd.
The embroidery area indicated above is for maximum pantograph movement. The actual embroidery area may be restricted by the frames used.
The embroidery speed ranges is indicated above. The actual speed depends on embroidery conditions, i.e. stitch length, fabric used, etc.
Orders for customized machines with non-standard embroidery area and specifications are accepted.
We reserve the rights to change the specifications for improvement without previous notice.
